We look at code generation for functions in ClojureCLR.

In a previous post (C4: Functional anatomy), we looked at how functions are represented in ClojureCLR. That post focused on the interfaces and classes that form the basis of the representation of functions. When we define a function in ClojureCLR, we generate a class derived from one of the base classes (typically AFunction or RestFn); there is a significant amount of support code that gets added. That support code is the topic of this post.

Our playground

The primary classes involved in function code generation are:

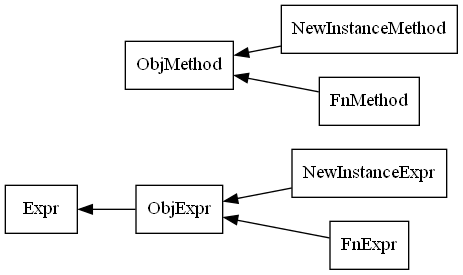

Graph of all types related to ObjExpr

I have no idea why ObjExpr and ObjMethod are named what they are. FnExpr is the AST node type that represents an fn* form; FnMethod represents an invoke method of the generated class. NewInstanceExpr represents a deftype or reify form; NewInstanceMethod represents a method of the generated class. There is a significant amount of shared code in the base classes ObjExpr and ObjMethod.

Note: Do not confuse NewInstanceExpr with NewExpr – the latter represents a new form that creates an instance of a class; that falls under host platform interop.

Out of control

If you look at code for the these classes and try to track the flow of data, well, good luck to you. It is a pit of despair. We are going to ignore completely (for now, at least) those grungy details. You will be able to get the details in the upcoming [C4: Out of control][TBD] post.

Just know that as we parse the forms in the body of the function, the parser is not only creating the AST node at that point but also pushing information into the FnMethod and FnExpr instances being built.

What’s inside

I’ll focus on FnExpr and FnMethod here. Most of this analysis applies to NewInstanceExpr and NewInstanceMethod as well.

We parse an individual invoke method of the function (one arity of the fn* definition) as follows:

  • Determine the return type of the method. This is typically object, but can be a more specific type if type hints are present. The only primitive types supported are long and double.

  • Process the parameters. This includes:
    • Determine the number of fixed parameters and whether there is a rest parameter (and not more than one)..
    • Determine the type of each parameter. This is typically object, but can be a more specific type if type hints are present. The only primitive types supported are long and double.
    • Create a list of LocalBinding instances, one for each parameter. These are used to represent the parameters in the body of the method.
  • Process the body of the method. This involves parsing the forms in the body and generating an abstract syntax tree (AST) for the body of the method; this AST has a BodyExpr as the root. The context of this parsing is the FnExpr itself, as well as the FnMethod being generated.

In addition to its BodyExpr, the FnMethod object holds a list of local bindings. This list is consulted when we are trying to resolve symbols occurring in the body code. This list will include the function parameters. However, special forms that define local bindings–let*, letfn*, and try (in its catch forms)–piggy-back on the FnMethod by adding their local bindings to the local bindings of the method. (In fact, if you try to evaluate a let* form not in the body of a function, it wraps itself in an anonymous function and parses that, so that it has an FnMethod to manage its local bindings.)

What information from the parsing of the body is collected in the FnExpr object we are building? The class we will ultimately define to represent the function we are defining is fairly simple: various flavors of invoke methods and static fields holding data needed by those methods. And a constructor. The information on the static fields is contributed by the forms parsed in the bodies of the methods.

The ObjExpr class maintains the following collections:

  • Constants: a list of all the constants (literal values) used in the function. These are contributed by nodes of type ConstantExpr, NumberExpr (when not long or double), KeywordExpr, and any references to Vars (when the symbol is not resolved to a local binding). Any constant that is needed in the final code generation will be stored in static fields in the generated class.
  • Closes: a map of local bindings that are closed over by the methods. These are references to local bindings from outer scopes.
  • KeywordCallsites: places where keywords are used as functions, as in (:key map).
  • ProtocolCallsites: places where protocol methods are called.

Constants contributes static fields to the function class. Closes defines the values needed for the constructor of the function class. KeywordCallsites and ProtocolCallsites also contribute static fields. We’ll discuss keyword callsites in [C4: Key in-site]/clojure-clr-next/general/2025/10/19/key-in-site.html. We’ll discuss protocol callsites in [C4: Is there a protocol for that?]/clojure-clr-next/general/2025/10/20/is-there-a-protocol-for-that.html.

Let’s look at some examples.

Basic examples

For the examples, we will show the Clojure code, then the generated code. The generated code is the decompilation into C# of the IL generated by ClojureCLR. Thanks goes to ILSpy.

Let’s start with a simple function:

(defn f1 [x] (str x))

We will give our examples as defn forms for convenience. However, this obscures a few important details. The defn form expands to a def of a fn form.

(def f (clojure.core/fn ([x] (str x))))

The clojure.core/fn itself is a macro that expands to an fn* form; in this case, it has the same body as shown here. The parser for def creates a context for the parsing the fn* form that provides the name f for the function. Parsing the fn* generates a class that holds the definition of the function. (That is actually a side-effect of parsing; even if the parse fails, you have a class floating around. What fun.)

The code generated for the def itself is roughly this:

RT.var("test.compiler", "f1").bindRoot(new compiler$f1());

In other words, find the Var for test.compiler/f1 and bind it to a new instance of the class compiler$f1, which is the class generated for the fn* form. Our interest here is the generated class. We’ll talk more about how the code for the def initialization is generated and used during loading in [C4: Some assembly required][TBD].

Here is the generated code for the class compiler$f1. My comments are interposed.

// AFunction is one of the standard base classes for function implementations.
public class compiler$f1 : AFunction
{
    // There is only one constant reference in the body: The Var for `clojure.core/str`.
    // We create a static field to hold that and initialize it in the static constructor.
	protected internal static Var const__0;

  	static compiler$f1()
	{
		const__0 = RT.var("clojure.core", "str");
	}

    // There is only one arity defined: 1 parameter, no '& arg'.
    // Thus we need only a single `invoke` method.
    // This function allows direct linking.
	// For such a function, any invoke method will delegate to a static method of the same signature.
    public override object invoke(object P_0)
	{
		return invokeStatic(P_0);
	}

    // This essentially is: (str x).
    public static object invokeStatic(object P_0)
	{
		return ((IFn)const__0.getRawRoot()).invoke(P_0);
	}

    // Not in the JVM version, but CLR needs this for certain operations.
    // We support only arity 1.
	public override bool HasArity(int P_0)
	{
		if (P_0 != 1)
		{
			return false;
		}
		return true;
	}
}

Now would be a good time to review C4: Functional anatomy to understand the base class AFunction, details on direct linking, and other background information.

If we have several arities, we get multiple invoke and invokeStatic methods. For example:

(defn f3
  ([] (f3 1))
  ([x] (f3 x 2))
  ([x y] (str x y)))

We also have some self-reference here. The generated code is:

public class compiler$f3 : AFunction
{
    // We have some additional constants.
	protected internal static Var const__0;
	protected internal static object const__1;
	protected internal static object const__2;
	protected internal static Var const__3;

	static compiler$f3()
	{
		const__0 = RT.var("test.compiler", "f3");
		const__1 = 1L;  // Note: implicit boxing
		const__2 = 2L;  // Note: implicit boxing
		const__3 = RT.var("clojure.core", "str");
	}

    // The invoke methods each delegate to the corresponding invokeStatic method.
    public override object invoke() => invokeStatic();
   	public override object invoke(object P_0)  => invokeStatic(P_0);
	public override object invoke(object P_0, object P_1) => invokeStatic(P_0, P_1);

    // This is essentially: (f3 1)
    // Note that we need to box the long value 1.
    // So that we only box once, we have a static field holding the boxed value.
	public static object invokeStatic(object P_0)
	{
		return ((IFn)const__0.getRawRoot()).invoke(P_0, const__2);
	}

    // Similarly (f2 x 2)
	public static object invokeStatic(object P_0)
	{
		return ((IFn)const__0.getRawRoot()).invoke(P_0, const__2);
	}

    // This is essentially: (str x y)
	public static object invokeStatic(object P_0, object P_1)
	{
		return ((IFn)const__3.getRawRoot()).invoke(P_0, P_1);
	}

    // We support arities 0, 1, and 2.
	public override bool HasArity(int P_0)
	{
		if (P_0 != 2 && P_0 != 1 && P_0 != 0)
		{
			return false;
		}
		return true;
	}
}

Primitive typing

If we have type hints for our arguments or return type and either a long or double type hint is involved, there are additional interfaces implemented and additional methods generated. For example:

(defn t
 (^long [^String x ^double y] (long (+ (double (count x)) y))))

We generate:

// Note the additional interface ODL.
// This is for the signature (object, double) -> long.
// Note that Object is specified instead of String.
// Reference types are always reduced to Object in the signatures.
// It actually is valid Clojure to pass any reference type instance as the first argument.
// The main purpose here is to avoid boxing of the double argument and the long return if possible.

public class compiler$t : AFunction, ODL
{
    // No static fields needed.
    // calls to long, double and count are inlined by the compiler.
    static compiler$t()
	{
	}

    // The invoke method still defers to the invokeStatic method.
    // However, we cast the second parameter to double because that is the required type.
	public override object invoke(object P_0, object P_1)
	{
		return invokeStatic(P_0, RT.doubleCast(P_1));
	}

    // Our invokeStatic has the designated signature
	// Direct linking this can avoid boxing of the double argument and the long return value.
	public static long invokeStatic(object P_0, double P_1)
	{
		return RT.longCast((double)RT.count(P_0) + P_1);
	}

    // This is the additional method needed for the ODL interface.
	public override long invokePrim(object P_0, double P_1)
	{
		return invokeStatic(P_0, P_1);
	}

	public override bool HasArity(int P_0)
	{
		if (P_0 != 2)
		{
			return false;
		}
		return true;
	}
}

Code calling this function can use the ODL interface to avoid boxing the double argument and the long return value. This can lead to improved performance in scenarios where these functions are called frequently or in tight loops.

For example, the code:

(defn ut [x y](t (str x) (double y)))

compiles to having the staticInvoke method:

	public static object invokeStatic(object P_0, object P_1)
	{
		return ((ODL)const__0.getRawRoot())
           .invokePrim(((IFn)const__1.getRawRoot()).invoke(P_0),
                       RT.doubleCast(P_1));
	}

Closures

If a function closes over local bindings from an outer scope, those local bindings are passed to the constructor of the function class and stored in instance fields. For example, consider a very silly function that returns a function that concatenates its argument to a designated string:

(defn h [x] (fn [y] (str x y)))

Looking first at the generated code for the inner function:

public class compiler$hfn__4264__4268 : AFunction
{
    // An instance field to hold the closed-over binding value.
	public object x;

    // The constant for the Var `clojure.core/str`.
	protected internal static Var const__0;
	static compiler$hfn__4264__4268()
	{
		const__0 = RT.var("clojure.core", "str");
	}

    // There is no staticInvoke method.
    // A method with closed-over bindings cannot be directly linked.
    // Thus, there is no invokeStatic method defined.
    // The invoke method must do the work.
	public override object invoke(object P_0)
	{
		return ((IFn)const__0.getRawRoot()).invoke(x, P_0);
	}

    public override bool HasArity(int P_0)
	{
		if (P_0 != 1)
		{
			return false;
		}
		return true;
	}

    // HERE is the secret sauce.
    // The constructor takes the closed-over binding as a parameter.
	public compiler$hfn__4264__4268(object P_0)
	{
		x = P_0;
	}
}

Classes for functions that do not close over outer-scope bindings need only a no-argument constructor. Here, we require a constructor that takes the closed-over binding x as a parameter and stores it in an instance field.

The outer function h generates the following code:

	public static object invokeStatic(object P_0)
	{
		return new compiler$hfn__4264__4268(P_0);
	}

When we call (h 12), say, we get back a new instance of the inner function class, with its x field set to 12.

Direct linking

Direct linking is a performance optimization that allows calls to functions to bypass some of the overhead of the general function call mechanism. It is described in C4: Functional anatomy.

The examples above were compiled with direct linking turned off; I wanted to show the generation of Var static fields in the function classes. When compiled with direct linking turned on,

public class compiler$f1 : AFunction
{
    // a static field for #'clojure.core/str
	protected internal static Var const__0;

  	static compiler$f1()
	{
		const__0 = RT.var("clojure.core", "str");
	}

    // Lookup of Var value required
    public static object invokeStatic(object P_0)
	{
		return ((IFn)const__0.getRawRoot()).invoke(P_0);
	}

    // ...
}

becomes

public class compiler$f1 : AFunction
{
    // no static fields needed
   	static compiler$f1()
	{
	}

	public static object invokeStatic(object P_0)
	{
		return core$str.invokeStatic(P_0);
	}

    // ...
}

Removing the Var value lookup measurably improves performance.

That’s enough.
